Cases

Electronics Parts Cases

Miniaturized structures · High-precision housings precision machining cases. Proven track record delivering electronic components at volume with tight tolerances.

Request a Quote View All Cases →

Case Studies

Featured Electronics Cases

Selected projects demonstrating our electronics machining capabilities.

RF Housing

  • — Precision cavity milling
  • — EMI gasket groove tolerance ±0.01mm
  • — Conductive anodize finish
  • — Wall thickness 2.0mm uniform

Tolerance Achieved

±0.01mm

Material

Aluminum 6061

Heat Sink

  • — High-density fin array
  • — Base flatness 0.05mm
  • — Thermal conductivity optimized
  • — Batch of 500+ units

Tolerance Achieved

±0.025mm

Material

Aluminum 6063

Connector Shell

  • — Micro CNC turning + milling
  • — Pin alignment ±0.005mm
  • — Gold-plated brass base
  • — Full Quality data provided

Tolerance Achieved

±0.005mm

Material

Brass C360

EMI Shield

  • — Board-level shield frame
  • — Aperture precision ±0.01mm
  • — Contact resistance verified
  • — Automated inspection for volume

Tolerance Achieved

±0.01mm

Material

Beryllium Copper

Product Gallery

Featured Product Renders

Representative product renders — material, process, and surface detail.

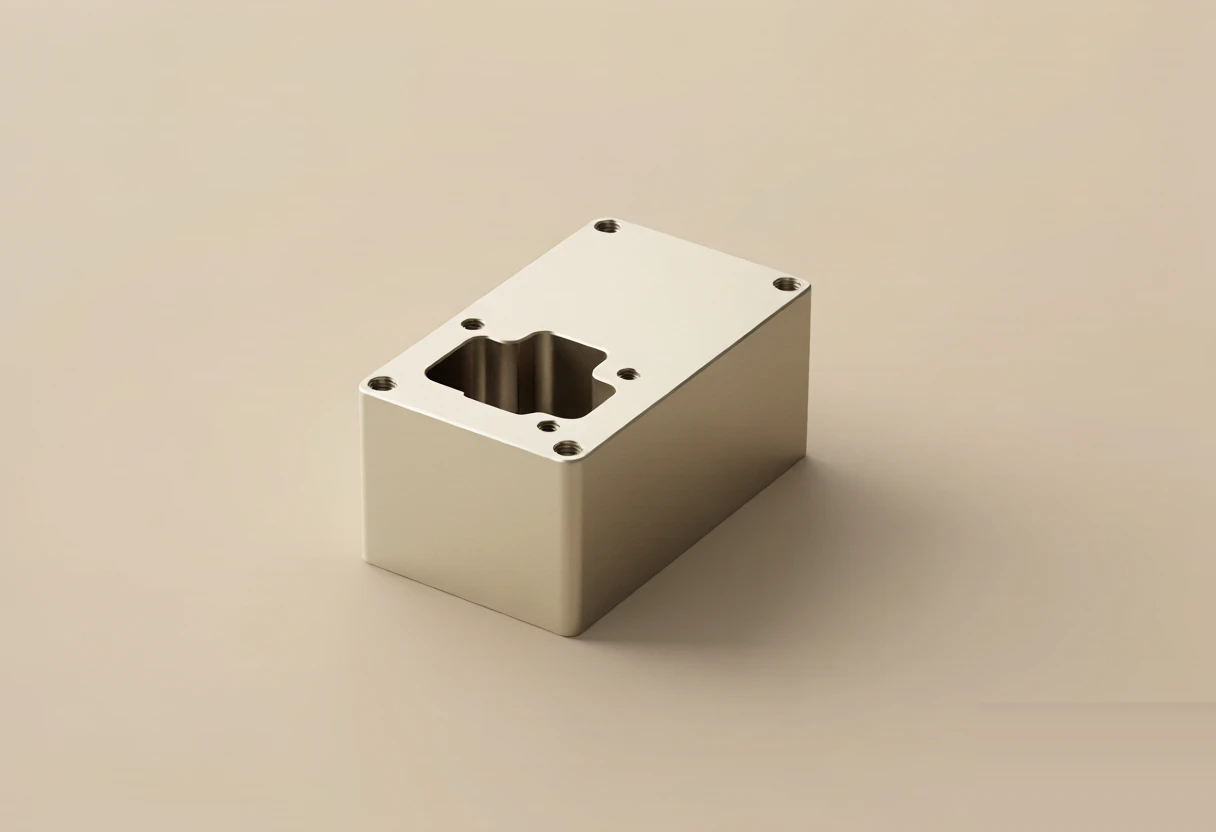

Aluminum 7075 5G RF shielding enclosure

RF Shielding Enclosure

Aluminum 7075 · precision milling · ±0.01mm

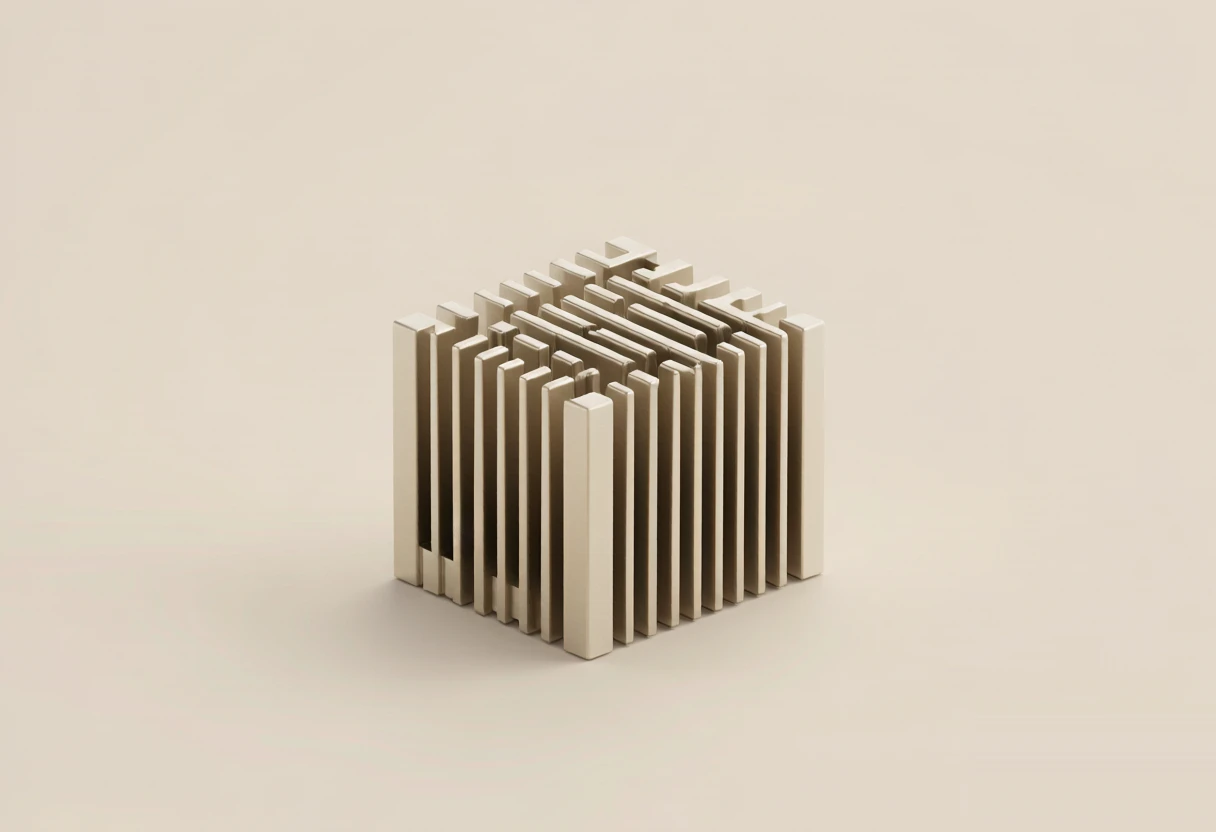

Aluminum 7075 pin-fin heatsink

Pin-Fin Heatsink

Aluminum 7075 · multi-slot milling · anodized

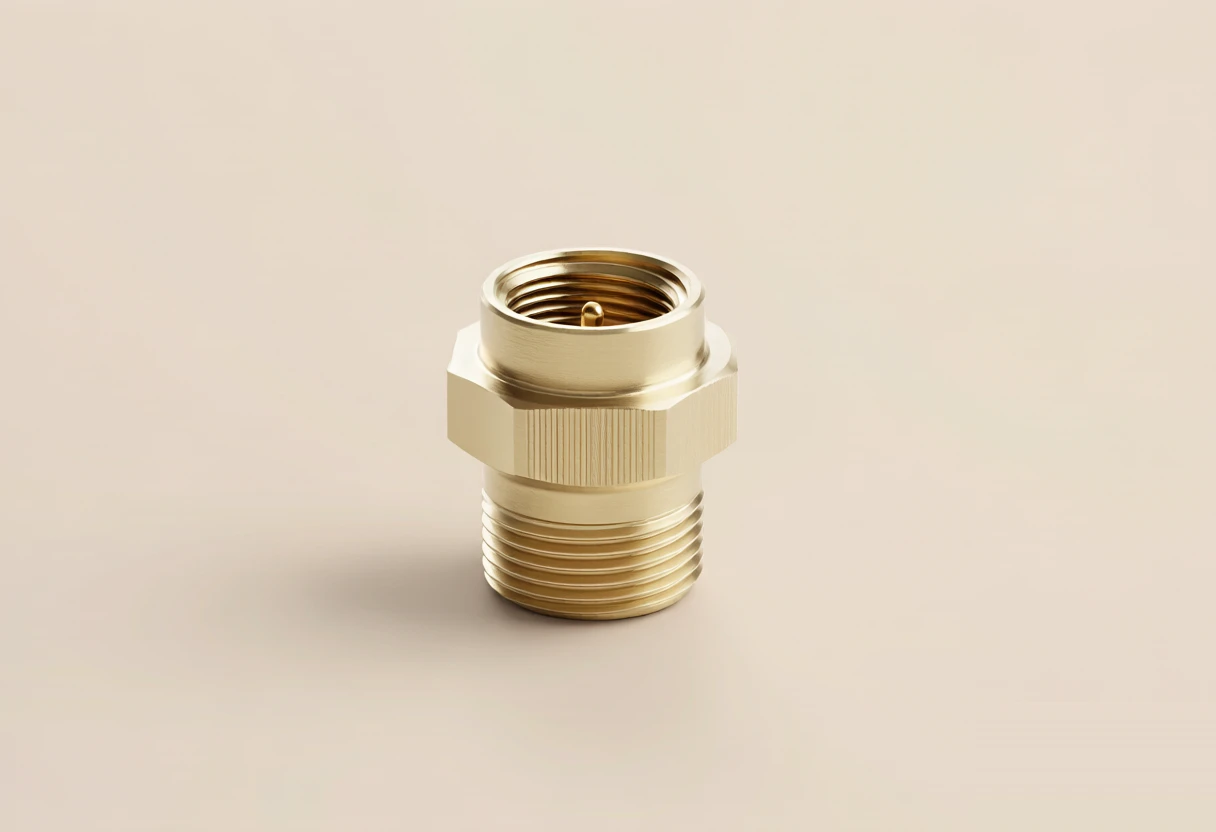

Brass coaxial RF connector

Coaxial Connector

Brass · turning + threading · gold-plated contact

Quality Control

Electronics Quality Standards

High-volume electronics production demands consistency and surface finish quality.

Process Control

In-process quality control for high-volume production. Cpk ≥ 1.33 on all critical dimensions.

Conductivity Test

Surface conductivity verified for EMI/RF shielding parts. Contact resistance measured per customer spec.

Coating Thickness

Anodize, nickel, and gold plating thickness verified by X-ray fluorescence. Mil-spec coatings available.

Dimensional Consistency

Vision inspection systems for high-volume runs. Automated sorting and packaging available.

Have a similar project?

Upload your drawing and our engineers will provide a quote and DFM feedback within 2 hours.
