5-Axis Machining Cases
Single-setup 5-face machining minimizes cumulative error across features. Our most complex 5-axis projects across satellite, energy, and industrial sectors.
Case Studies
Featured 5-Axis Cases
Selected projects showcasing our 5-axis machining precision.
Impeller Blade
- — 5-axis continuous machining
- — Blade profile accuracy ±0.005mm
- — Balanced surface Ra 0.4
- — Stainless 17-4 PH material
Tolerance Achieved
±0.005mm
Material
Stainless 17-4 PH
Turbine Housing
- — Complex internal contouring
- — Multi-angle bore intersections
- — Sealing face flatness 0.01mm
- — Inconel 625 high-temp alloy
Tolerance Achieved
±0.01mm
Material
Inconel 625
Curved Bracket
- — 3D contoured surface finishing
- — Mounting hole true position ±0.02mm
- — Lightweight pocketed design
- — Titanium Ti-6Al-4V material
Tolerance Achieved
±0.025mm
Material
Titanium Ti-6Al-4V
Satellite Fitting
- — Single-setup 5-face machining
- — Minimizes cumulative error across features
- — Full GD&T compliance
- — Traceable material cert available on request
Tolerance Achieved
±0.005mm
Material
Aluminum 7075-T6
Product Gallery
Featured Product Renders
Representative product renders — material, process, and surface detail.

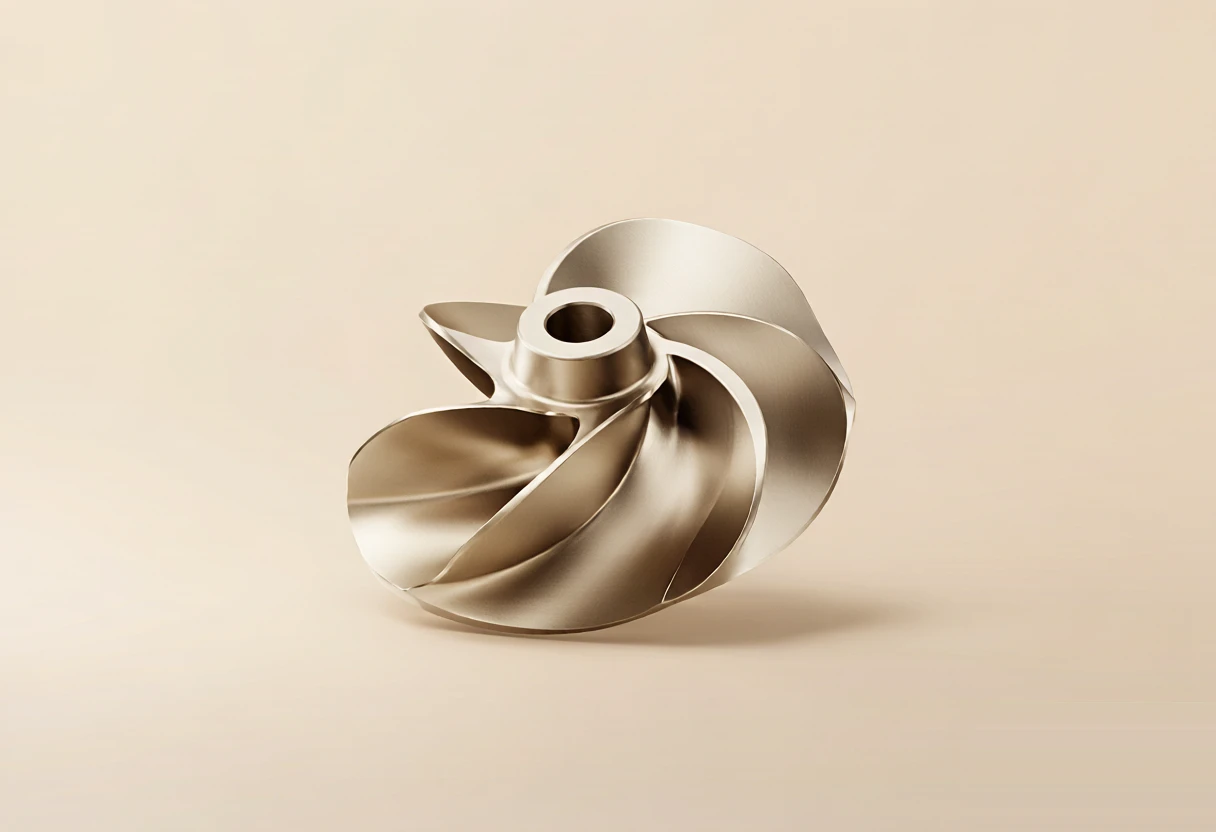

5-Axis Titanium Impeller
Titanium · simultaneous 5-axis · blade profile 0.05mm

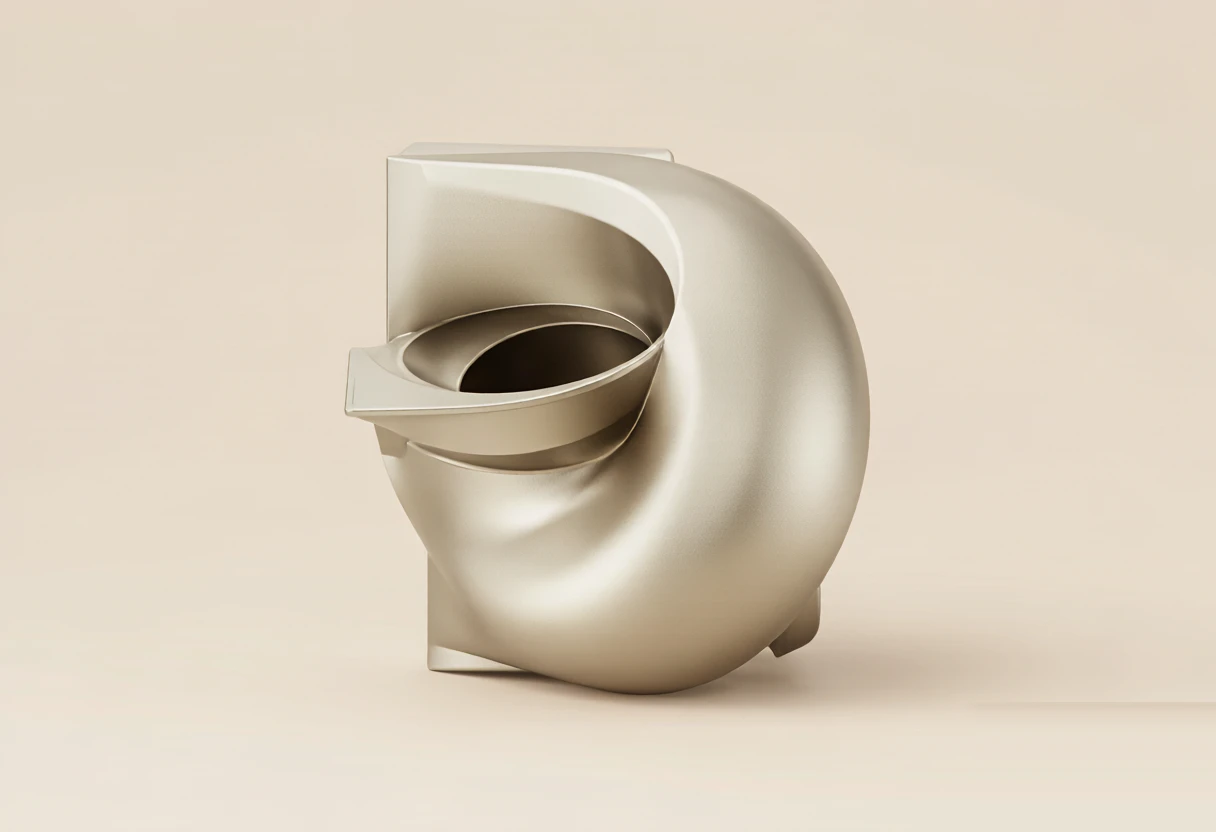

Turbo Volute Housing
Aluminum · 5-axis contour milling · R0.5 corner

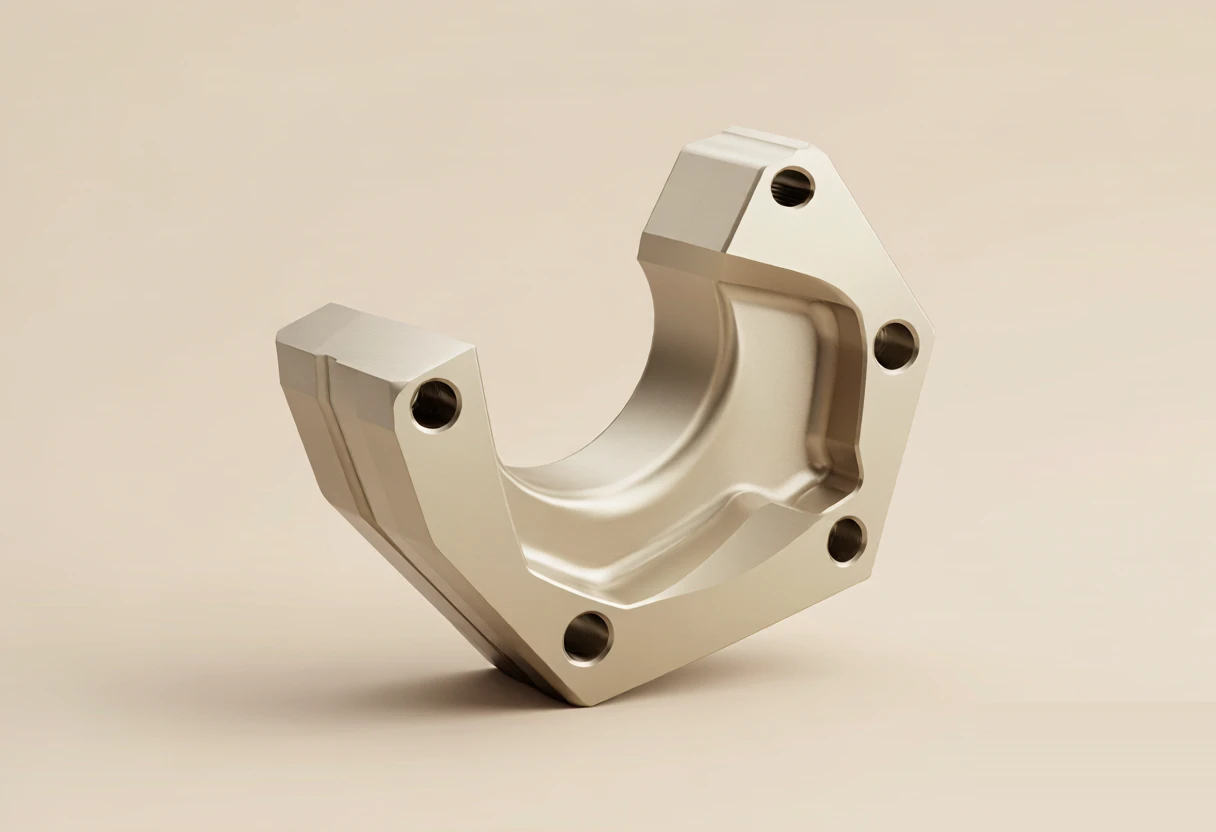

5-Axis Satellite Bracket
Aluminum 7075 · multi-sided 5-axis · ±0.02mm
Quality Control
5-Axis Quality Standards
5-axis parts demand the most rigorous inspection methods.
CMM verification (via our group's shared metrology center, on request)
5-axis parts can be CMM-verified for key geometric tolerances at our group's shared metrology center on request. Full 3D scan reports available on request.
Surface Finish Ra
Profilometer-verified from Ra 0.2 to Ra 3.2 per requirement. Polishing available for critical surfaces.
Tolerance Compliance
ISO 2768-f (fine) and ASME Y14.5 GD&T applied; key dimensions verified and reported on request.
Final QC
For qualified high-reliability parts, 100% inspection of critical dimensions with dimensional, visual, and material cert verification before shipment (on request).
Have a similar project?
Upload your drawing and our engineers will provide a quote and DFM feedback within 2 hours.
