Featured CNC Turning Cases
Selected projects demonstrating our CNC turning precision.
Stepped Shaft
- — Multi-diameter turning ±0.005mm
- — Ground bearing journals Ra 0.4
- — Keyway milling on C-axis
- — Length 320mm, max OD 65mm
Tolerance Achieved
±0.005mm
Material
Steel 4140
Precision Bushing
- — ID/OD concentricity 0.005mm
- — Boring to H7 tolerance
- — Oil groove turning
- — Brass C360 bar stock
Tolerance Achieved
±0.01mm
Material
Brass C360
Flange
- — Face finish Ra 0.8
- — Bolt circle drilling ±0.02mm
- — Sealing lip groove turning
- — Aluminum 6061 bar stock
Tolerance Achieved
±0.025mm
Material
Aluminum 6061
Threaded Collar
- — Precision thread M42x1.5
- — Face runout 0.01mm
- — Knurling pattern uniform
- — Stainless 303 bar stock
Tolerance Achieved
±0.01mm
Material
Stainless 303
Quality Control
CNC Turning Quality Standards
Turned parts require concentricity and surface finish precision at every stage.
CMM verification (via our group's shared metrology center)
Critical turned dimensions can be CMM-verified via our group's shared metrology center on request. Full reports included.
Surface Finish Ra
Ground and polished surfaces verified by profilometer. Ra 0.2–1.6 achievable on cylindrical surfaces.
Tolerance Compliance
ISO 2768-m tolerance standards applied. GD&T callouts confirmed on first-article inspection (FAI) on request.
Final QC
Thread gauge inspection, surface finish verification, and visual inspection before shipment.
Product Gallery
Featured Product Renders
Representative product renders — material, process, and surface detail.

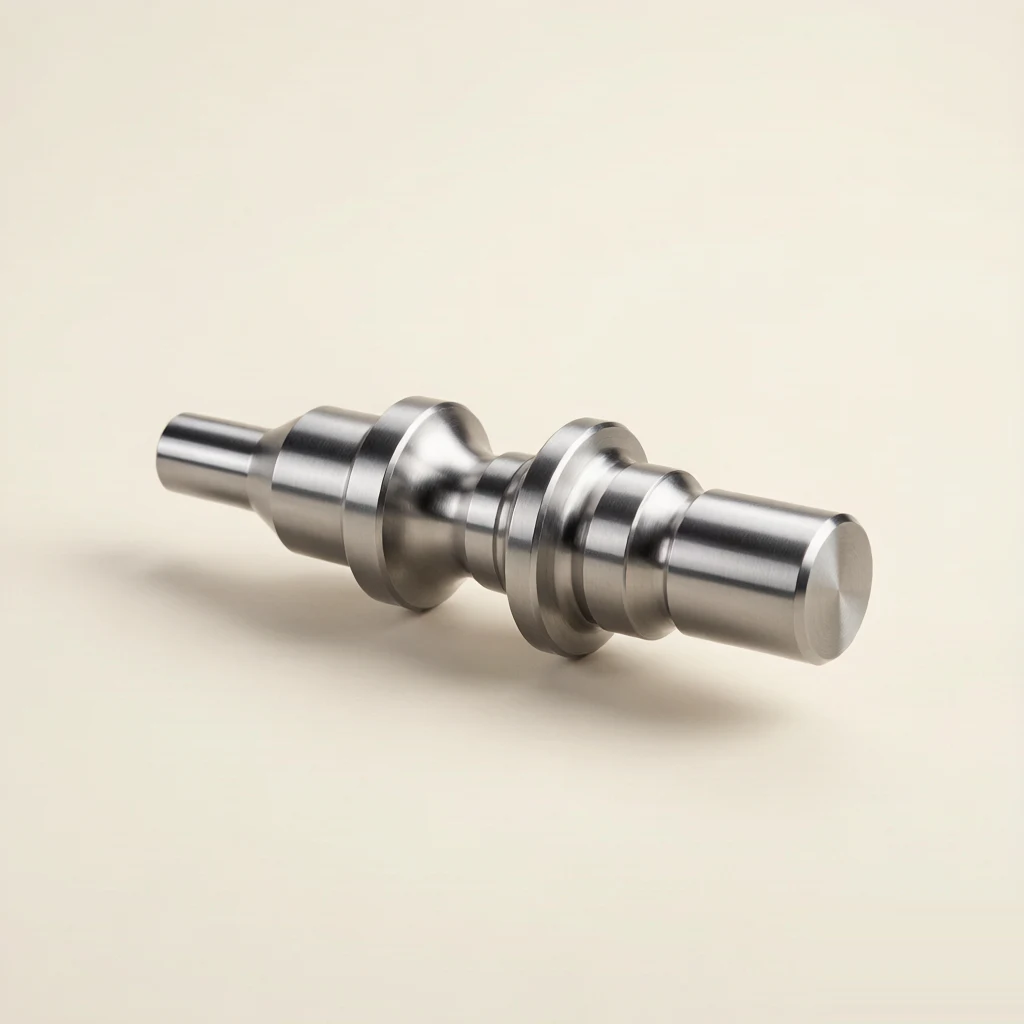

Stepped Shaft
Steel 4140 · turning + grinding · runout 0.005mm

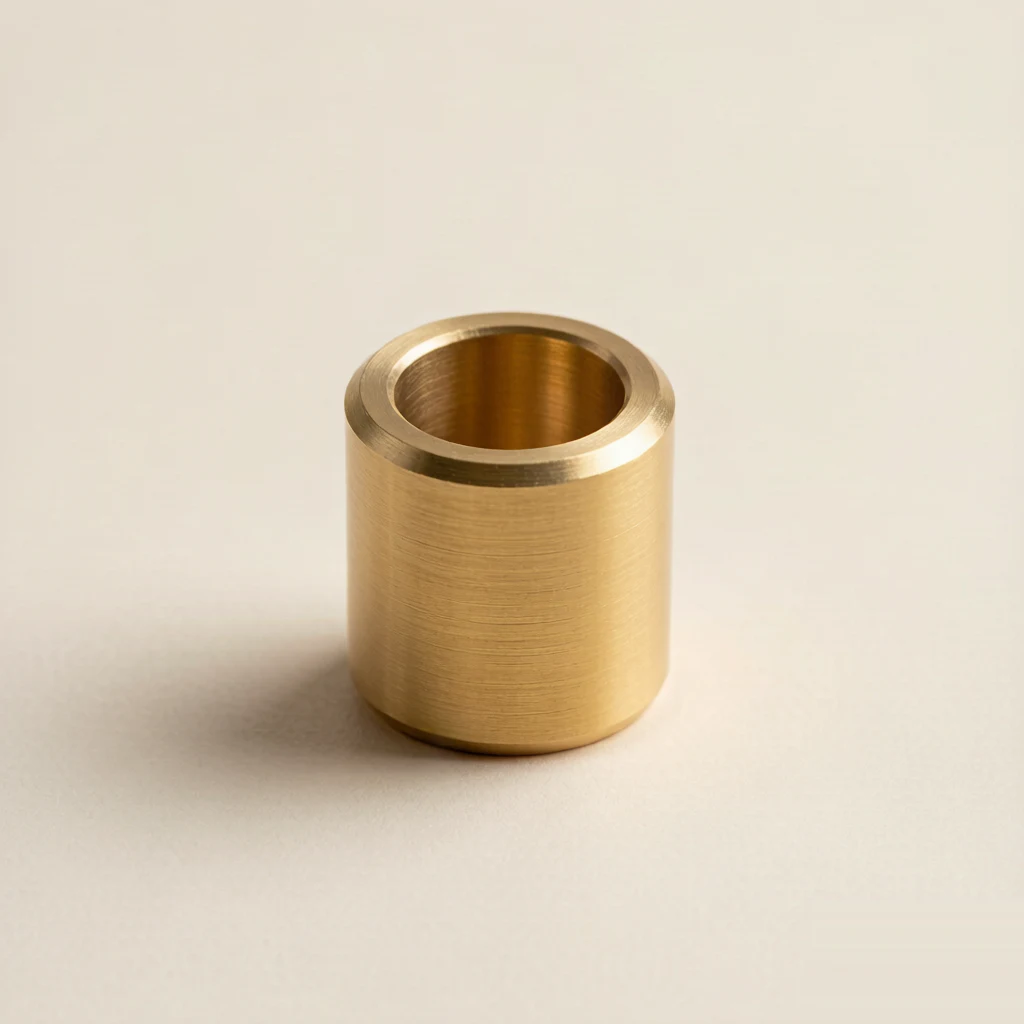

Precision Bushing
Brass C360 · turning + boring · ID H7

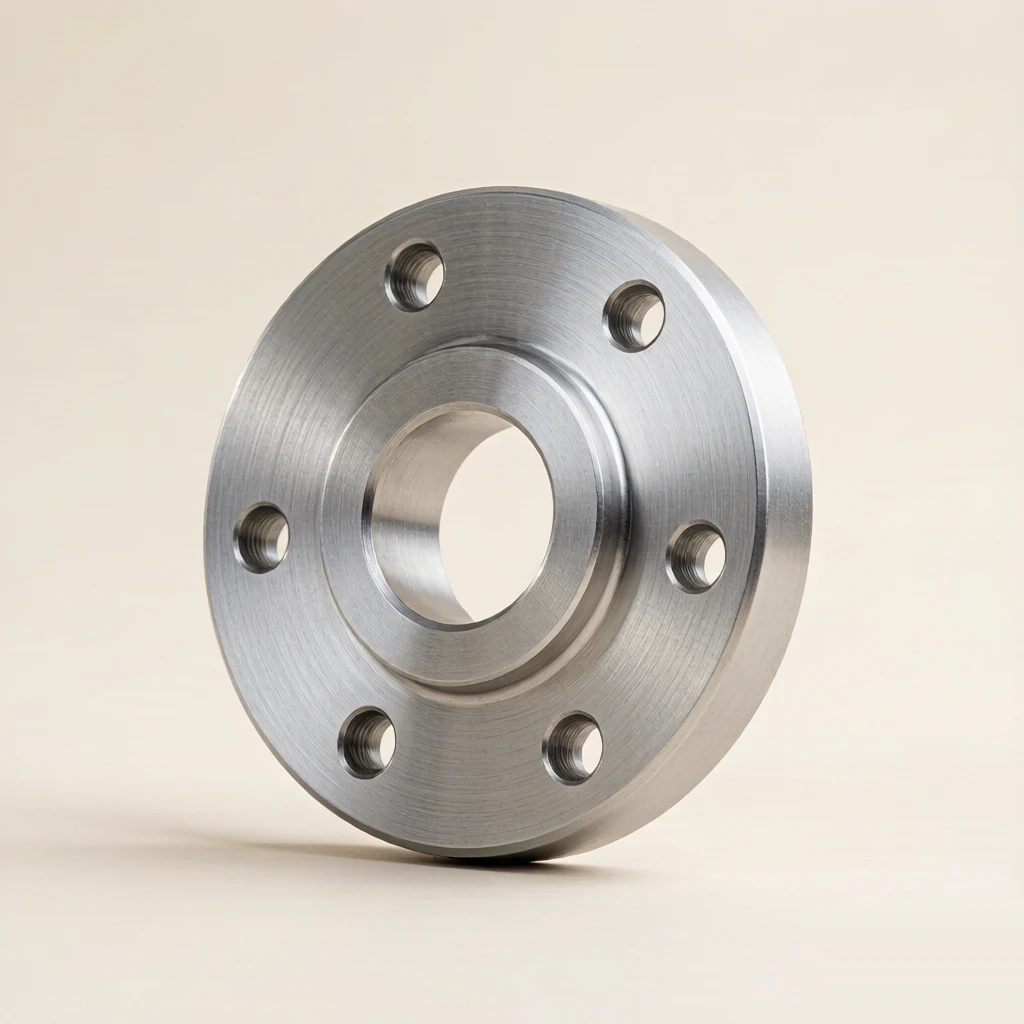

Flange
Aluminum 6061 · turning + drilling · runout 0.01mm

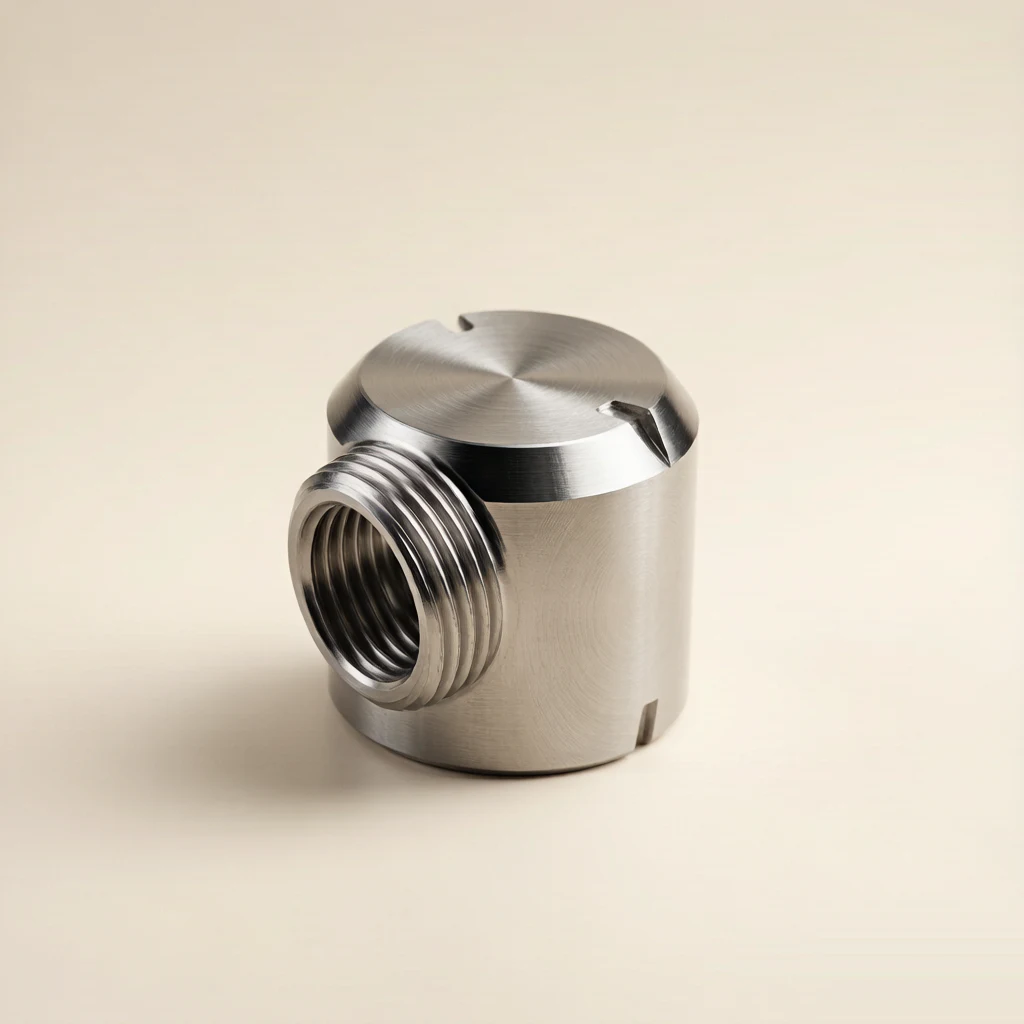

Threaded Collar
Stainless 303 · turned thread · M42

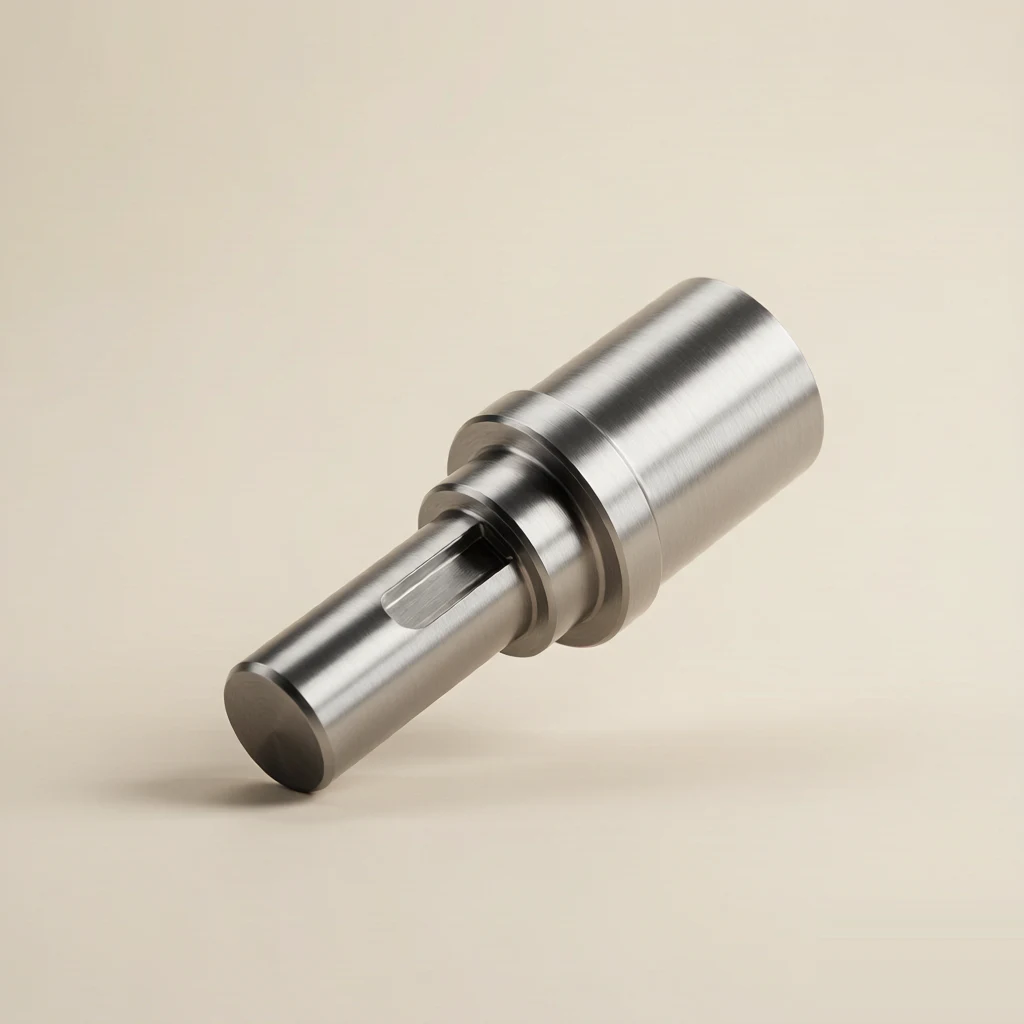

Pump Shaft
Stainless 316L · precision turning

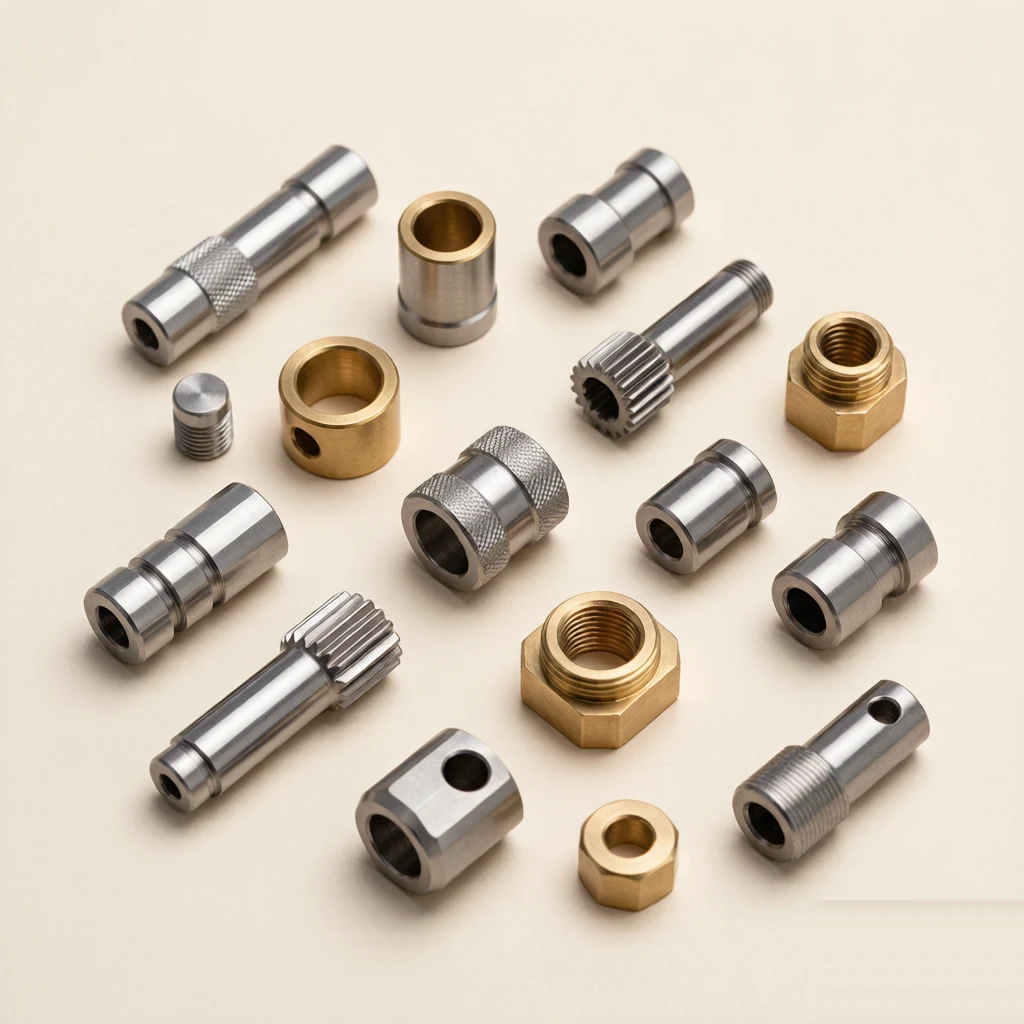

Turned Parts Collection
Multi-material · multi-process · high consistency
Have a similar project?
Upload your drawing and our engineers will provide a quote and DFM feedback within 24 hours.
