Drill-Tap Center
Jiafu JF-500
Compact drill-tap center with BT30 20,000 rpm spindle and servo tool magazine, built for high-speed batch processing of 3C electronics and small aluminum/copper parts.
钻攻中心
佳富 JF-500
紧凑型钻攻中心，BT30 20000 转主轴配伺服刀库，专为 3C 电子和小型铝铜件的高速批量加工而设计。

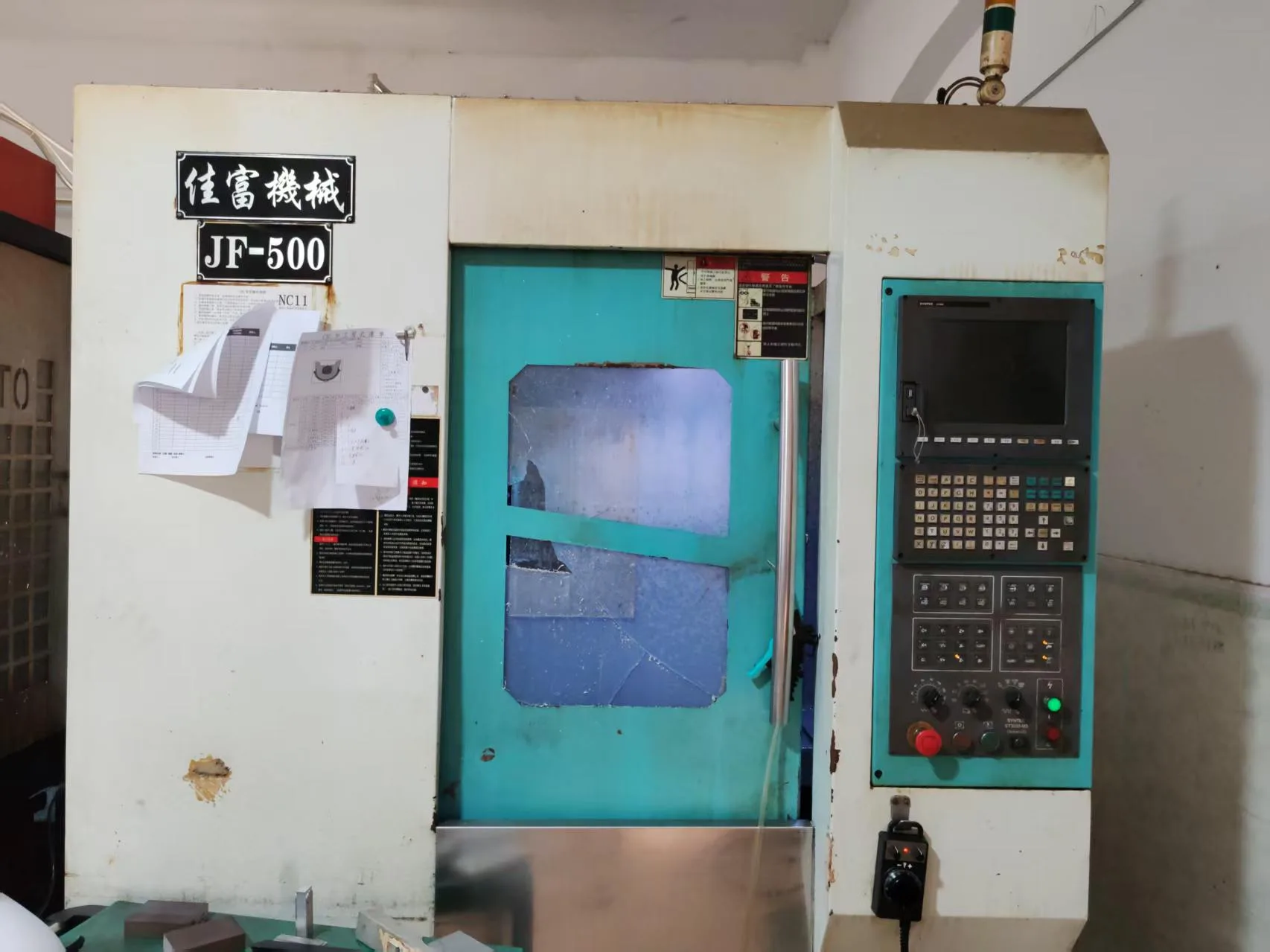

Representative unit of Jiafu JF-500 · Multiple units in our family network
Overview
The Jiafu JF-500 is a compact drill-tap machining center that combines high spindle speed with fast tool changes for efficient small-part production. Its BT30 20,000 rpm spindle and 16/21-tool servo magazine handle drilling, tapping, and light milling on aluminum, copper, and other non-ferrous materials.
As part of our associated shop network, the JF-500 handles high-volume 3C electronics and small hardware orders with reliable repeatability. All parts are quality-checked on our in-house measuring equipment before delivery.
设备概述
佳富 JF-500 是一款紧凑型钻攻加工中心，高转速主轴配合快速换刀，小零件生产效率高。BT30 20000 转主轴搭配 16 或 21 把伺服刀库，可完成铝、铜及其他有色金属的钻孔、攻丝和轻铣加工。
作为集团协作产能网络的一员，JF-500 以稳定的重复精度承接大批量 3C 电子和小五金订单。所有零件出货前均经厂内检测设备质量检验。
Technical Specifications
技术参数
Why This Machine
BT30 High-Speed Spindle
20,000 rpm spindle delivers excellent surface finish on aluminum and copper parts.
Servo Tool Magazine
Fast and reliable servo-driven tool change minimizes non-cutting time in production cycles.
High Rapid Traverse
Up to 60,000 mm/min rapid traverse reduces positioning time between features.
Compact Efficient Layout
Small footprint optimized for cell-based production and high-mix small-batch work.
Proven Control Platform
Mitsubishi or Fanuc control system ensures reliability and operator familiarity.
Batch-Consistent Accuracy
Stable machine structure delivers repeatable results across long production runs.
设备亮点
BT30 高速主轴
20000 rpm 转速，铝件铜件加工表面光洁度优异。
伺服刀库
伺服驱动换刀快速可靠，生产循环中非切削时间最短。
高快移速度
最高 60000 mm/min 快移，减少特征间定位时间。
紧凑高效布局
占地小，适合单元式生产和多品种小批量加工。
成熟控制系统
三菱或发那科系统，运行可靠，操作人员熟悉度高。
批量精度稳定
机床结构稳定，长批次加工中尺寸一致性好。
Verified Equipment / 铭牌验证
This page features a representative Jiafu JF-500 unit from our family workshop. The machine nameplate confirms the model and build record, ensuring full traceability for your project.
Representative nameplate of Jiafu JF-500 · 佳富 JF-500 代表铭牌
