Engraving / VMC
WANGHUI XH-540
Mold engraving and machining center with high-speed motorized spindle, designed for mold engraving, jig machining and batch drilling/tapping of aluminum workpieces.
雕铣/加工中心
望辉机械 XH-540
配备高速电主轴的模具雕铣加工中心，适用于模具雕铣、治具加工及铝件批量攻钻。

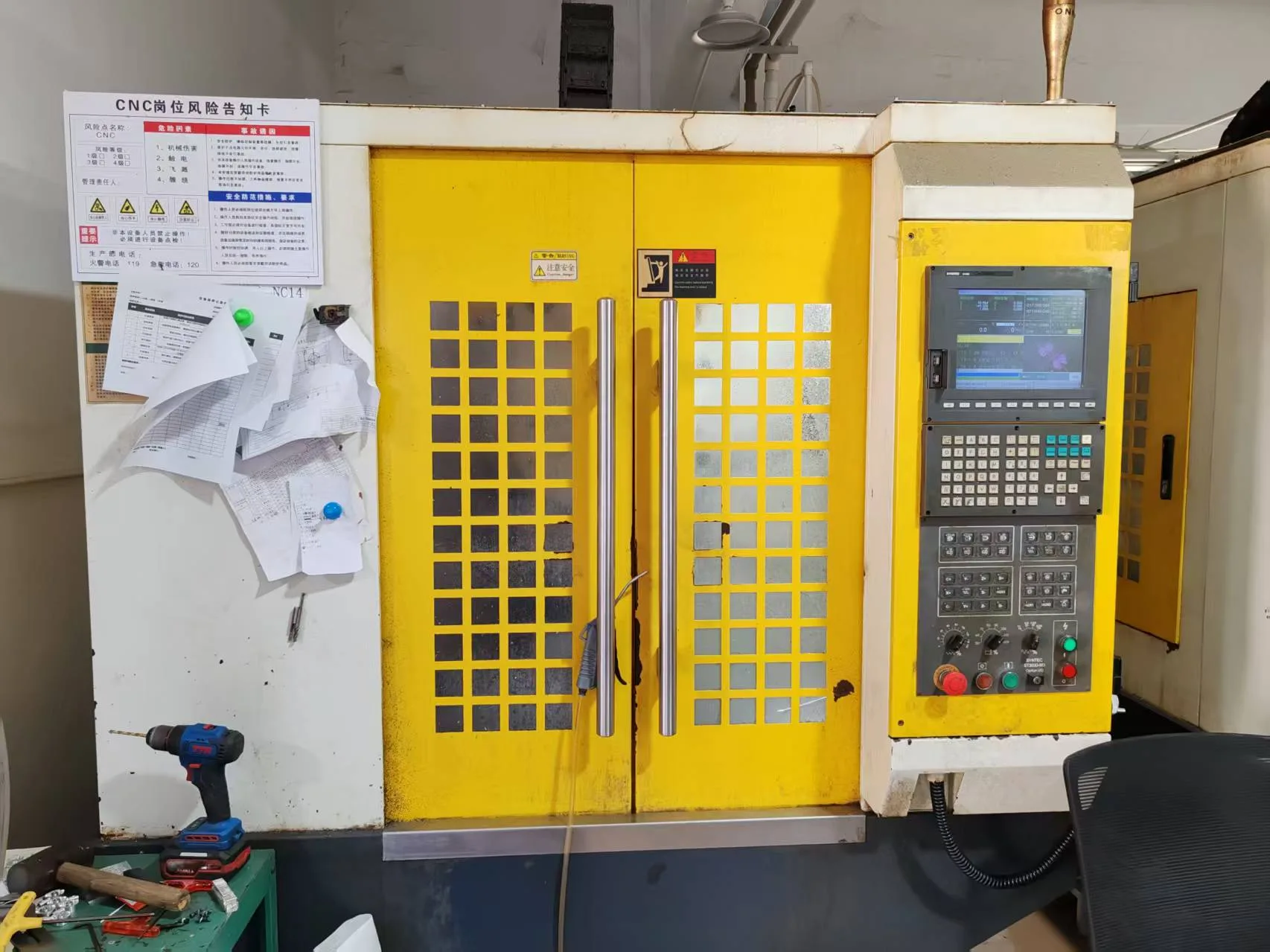

Representative unit of WANGHUI XH-540 · Multiple units in our family network
Overview
The WANGHUI XH-540 is a dedicated mold engraving machining center equipped with a high-speed motorized spindle running at approximately 24,000 rpm. It is purpose-built for mold engraving work, jig and fixture machining, and batch drilling and tapping of aluminum parts, combining engraving precision with general machining versatility.
Within our associated shop network, the XH-540 serves as a specialized engraving resource that complements our standard VMC fleet. Its servo-driven system delivers reliable accuracy for both mold detail work and production drilling/tapping jobs.
设备概述
望辉 XH-540 是一款专业模具雕铣加工中心，配备约 24000 转高速电主轴。专为模具雕铣、治具夹具加工以及铝件批量钻攻而设计，兼顾雕铣精度与通用加工灵活性。
在集团协作产能网络中，XH-540 作为专业雕铣资源与标准立加机群形成互补。伺服驱动系统为模具精细加工和量产钻攻提供稳定可靠的精度。
Technical Specifications
技术参数
Why This Machine
High-Speed Motorized Spindle
~24,000 rpm spindle delivers fine surface finish on molds and aluminum parts.
Mold Engraving Specialist
Purpose-built for mold engraving with the precision needed for fine details.
Jig & Fixture Machining
Handles custom jig and fixture work efficiently, from prototyping to small batches.
Aluminum Drilling & Tapping
Capable of batch drilling and tapping operations on aluminum workpieces.
Servo-Driven Precision
Servo motor drive system ensures accurate positioning and reliable repeatability.
Family-Network Specialty Capacity
Dedicated engraving capacity within our multi-machine workshop network.
设备亮点
高速电主轴
约 24000 转主轴，模具及铝件加工表面光洁度好。
模具雕铣专长
专为模具雕铣设计，精细纹路加工精度有保障。
治具夹具加工
高效承接定制治具夹具加工，从原型到小批量均可。
铝件钻攻
可完成铝件的批量钻孔与攻丝作业。
伺服驱动精度
伺服电机驱动系统，定位准确，重复精度可靠。
集团协作产能网络特种产能
多机车间网络中的专业雕铣产能资源。
Verified Equipment / 铭牌验证
This page features a representative WANGHUI XH-540 unit from our family workshop. The machine nameplate confirms the model and build record, ensuring full traceability for your project.
Representative nameplate of WANGHUI XH-540 · 望辉 XH-540 代表铭牌
